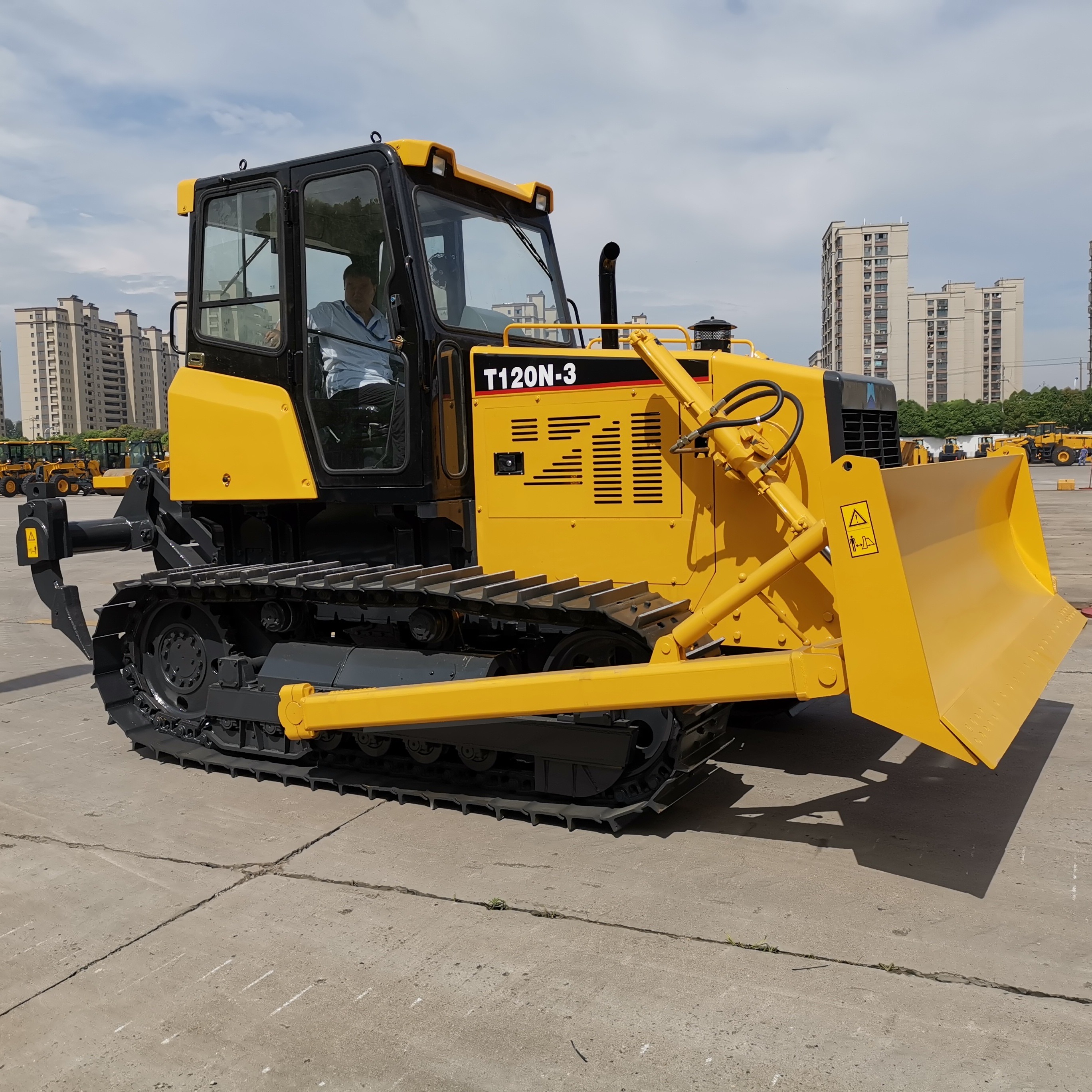

T120N-3 Crawler Bulldozer
| Total weight | 10400KG |
| Max towing force | 95kN |
| Engine model | LR6A3-23 |
| Engine rated power/speed | 81KW/2300r/min |
| Fuel consumption of the engine | ≤242g/kw.h |
| Engine max torque | 400N.m |
| Forward 1-4gear | 2.6-10.4km/h |
| Reverse 1-2 gear | 3.7-6.7km/h |
| Track board width | 450mm |
| Land pressure | 54.4kPa |
| Overall dimension | 4190*3240*3060mm |
| Bulldozer shovel | 2935*960mm |
| Blade max lifting height | 830mm |
| Blade max digging depth | 350mm |
| Towing equipment/Scarifier(Optional) | Stationary type/three tooth |
FEATURES
1.Engine Choose the engine produced with British Ricardo joint-veture technology,which confirms to National II emission standard ,and features low noise,large torque,energy efficient and environmental friendliness.
2.Main Clutch Choose dry,multi-disk and constant combining clutch which features big torque reserve and high reliability
3. Gearbox Choose 4F+2R mechanical gear-shifting gearbox,simply operating,conveniently maintaining,reliably using
4.Steering clutch Choose dry and multi-disk turning clutch,manually operating with hydraulically-assisted,easily maintaining,lightly and conveniently operating.
5. Cabin Adopt the luxury cab,overhead air-conditioning system,comfortable operating space.
FAQ
1.Why Choose Us?
CHANGLIN WEA Is Committed To Offer Not Only Products With High Quality And Performance And Competitive
Price, But Also In-Time Delivery And Comprehensive 7*24 After-Sale Services.
2.What is the product range of our factory ?
CHANGLIN WEA is a large-scale machinery manufacturing enterprise primarily specializes in supplying excavator,wheel
loaders,palm oil tractor and related attachments. We can also customize non-standard products according to customer's
requirements.
3.What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight
with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. and also EPA approval will be available if
needed.
5. How about the delivery time?
About standard products, we always have in stock and can
deliver immediately. But customized products will take more time, depending on the requirements of the order.
